Artistry Cart

Deliverables / RoleFull-Stack Architect & DevOps Engineer

Platforms / CategoryFull-Stack

CAPABILITIES

Multi-vendor artisan commerce built as a service-oriented Nx monorepo. 9 deployable applications connected through an API gateway, Kafka event streaming, and shared infrastructure packages — with AI Vision fully isolated from transactional commerce.

9Deployable Apps

25+Database Models

5CI/CD Workflows

5Architecture Decision Records

Timeline

Jun 2025 – Jun 2026 (12 Months)

Live Site Code

A production-oriented, multi-vendor commerce platform built as an Nx monorepo. The architecture deliberately sits between a monolith and a fully decoupled microservices system — 9 deployable applications share a unified Prisma schema on MongoDB while maintaining logical service boundaries through code ownership, dedicated ports, and an API gateway routing layer.

DECISION // PHILOSOPHY

“A practical middle ground between a pure monolith and a fully decoupled distributed system — service boundaries are logical rather than physical, which is the right tradeoff for a solo-operated platform.”

Key Details

Hover to Expand • Swipe

Why Nx Monorepo

Shared Prisma client, unified TypeScript config, atomic cross-service changes, and Nx affected builds that skip unchanged services. A single developer can iterate faster than managing 9 separate repositories.

Why Shared Database

Pragmatic tradeoff: services express data ownership logically through code and APIs, not physically through separate databases. This avoids distributed transaction complexity while a single developer owns all services.

Why API Gateway

Frontends see one backend entry point. The Express gateway centralizes CORS, rate limiting, health checks, and proxy routing — internal services stay behind ClusterIP in Kubernetes.

Why Isolated AI Vision

AI workloads have heavier dependencies, different latency profiles, and scheduled Agenda background jobs. Isolating them from core commerce APIs prevents slow AI calls from degrading checkout performance.

SYSTEM
ARCHITECTURE

Engineered for production durability, type safety, and scalable domain isolation. Every module operates with strict boundaries and predictable failure handling.

MODULAR DOMAIN ISOLATION — BUILT FOR ZERO-DOWNTIME DEPLOYMENTS, TYPE-SAFE CONTRACTS, AND FAIL-SAFE EXCEPTION BOUNDARIES.

SYSTEM BLUEPRINTOpen Vector View

Architectural Modules

Hover to Expand • Swipe

API Gateway Pattern

Single Express entry point proxying traffic to 5 internal domain services. Centralizes CORS, rate limiting, request IDs, security headers, and health checks.

Kafka Analytics Pipeline

User activity events flow through Kafka into a dedicated worker that materializes analytics read models. Purchases use an outbox pattern to avoid coupling order writes with analytics.

AI Vision Boundary

AI workloads (Gemini generation, CLIP embeddings, Agenda jobs) are fully isolated from transactional commerce services — different latency profiles, heavier dependencies, independent scaling.

Shared Infrastructure Packages

5 workspace packages (error-handler, middleware, libs, utils, test-utils) provide unified error contracts, JWT auth, Prisma client, Kafka utilities, and test factories across all services.

Multi-Stage Docker & K8s

Reusable Dockerfiles produce minimal images. Kustomize overlays for dev/staging/production. Only gateway and frontends are public — internal services stay behind ClusterIP.

PROJECT
IMPACT

Production performance measured under live traffic load, latency stress profiles, and automated system profiling.

ALL OUTCOMES ARE EMPIRICALLY VERIFIED IN PRODUCTION ENVIRONMENTS — MEASURED UNDER HIGH CONCURRENCY, PEAK LATENCY PROFILES, AND AUTOMATED SYSTEM HEALTH AUDITS.

Deployable Apps

25+

Database Models

CI/CD Workflows

Architecture Decision Records

KEY
CAPABILITIES

Core capabilities engineered for high-scale reliability, intuitive operator workflows, and real-time production execution.

PRODUCTION-TESTED SYSTEM FEATURES — ARCHITECTED FOR LOW-LATENCY INTERACTION, DETERMINISTIC STATE HANDLING, AND COMPREHENSIVE TELEMETRY.

MODULE / 01

Nx 21pnpm WorkspaceTypeScript

Service-Oriented Nx Monorepo

9 deployable applications (2 Next.js frontends, 1 API gateway, 5 domain services, 1 Kafka worker) and 5 shared infrastructure packages. Nx affected builds skip unchanged services, and shared TypeScript config ensures consistency.

9Applications

5Shared Packages

MODULE / 02

KafkaJSOutbox PatternDLQ

Kafka Analytics Pipeline with DLQ

Frontend publishes user activity events (browse, cart, wishlist, shop visits) to Kafka. Order-service publishes purchase events via an outbox pattern. The kafka-service worker materializes these into UserAnalytics, productAnalytics, and shopAnalytics read models with manual offset commits and dead-letter queue support.

AsyncEvent Flow

3Analytics Models

MODULE / 03

GeminiCLIPAgenda.jsImageKit

AI Vision Service Boundary

Isolated service handling text/image generation via Gemini, visual search via CLIP embeddings, concept galleries, artisan matching, and scheduled maintenance via Agenda.js. Supports anonymous exploration on selected paths while enforcing auth on creation routes.

IsolatedFrom Commerce

BackgroundAgenda Jobs

MODULE / 04

Stripe SessionsWebhooksRaw Body Parsing

Stripe Connect with Webhook Verification

Handles payment sessions and intents for checkout, with 90/10 seller/platform fee splitting. Stripe webhooks mount before JSON body parsing to preserve raw request body for signature verification — a subtle but critical ordering requirement.

90/10Revenue Split

VerifiedWebhooks

MODULE / 05

GitHub ActionsTrivySBOMKustomize

CI/CD Pipeline with Security Scanning

5 GitHub Actions workflows: PR validation with Nx affected tests/builds, image publishing to GHCR with Trivy scanning and SBOM/provenance, staging deployment via Kustomize overlays, controlled production promotion, and nightly security audits.

5CI Workflows

AutomatedSecurity Scans

SYSTEM
MODULES

Logical grouping of platform capabilities and execution primitives by architectural domain.

ISOLATED DOMAIN SPECIFICATIONS — MODULAR ARCHITECTURAL LAYERS DELIVERING HIGH THROUGHPUT AND RESILIENT FAULT TOLERANCE.

Domain Capabilities

Hover to Inspect • Swipe

Architecture & System

01Service-oriented Nx monorepo architecture
02Kafka analytics pipeline with Dead Letter Queue (DLQ)
03Isolated AI Vision service with Gemini & CLIP embeddings
04Stripe Connect payments with automated fee splitting
05Automated GitHub Actions CI/CD with Trivy container security audits

VISUAL
SHOWCASE

A detailed look at the interface, workflows, and execution environments engineered for this system.

PLATFORM PREVIEWS — PRODUCTION DEPLOYMENT CAPTURES AND INTERFACE WALKTHROUGHS.

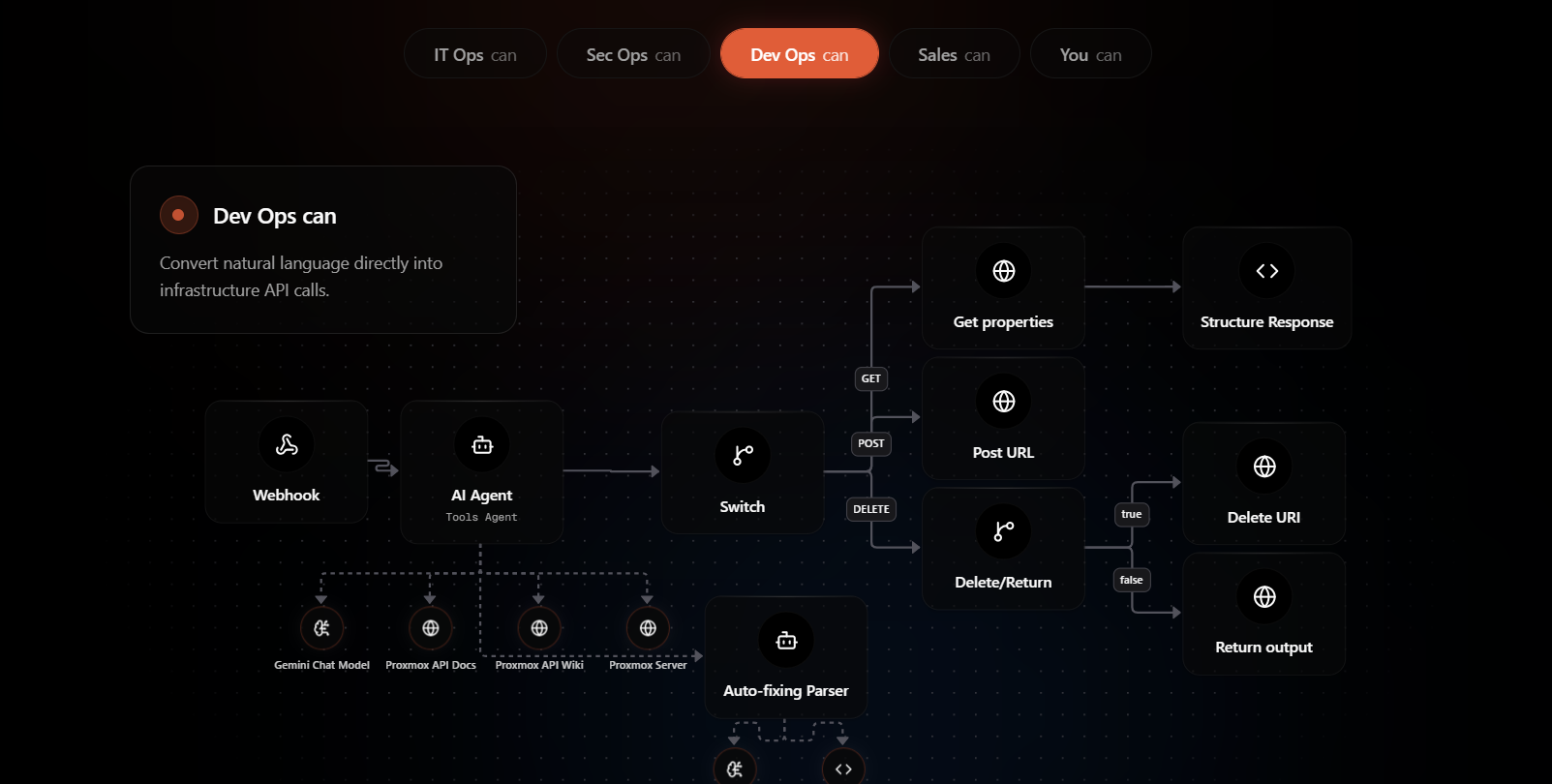

MEDIA / 01STATIC_CAPTURE

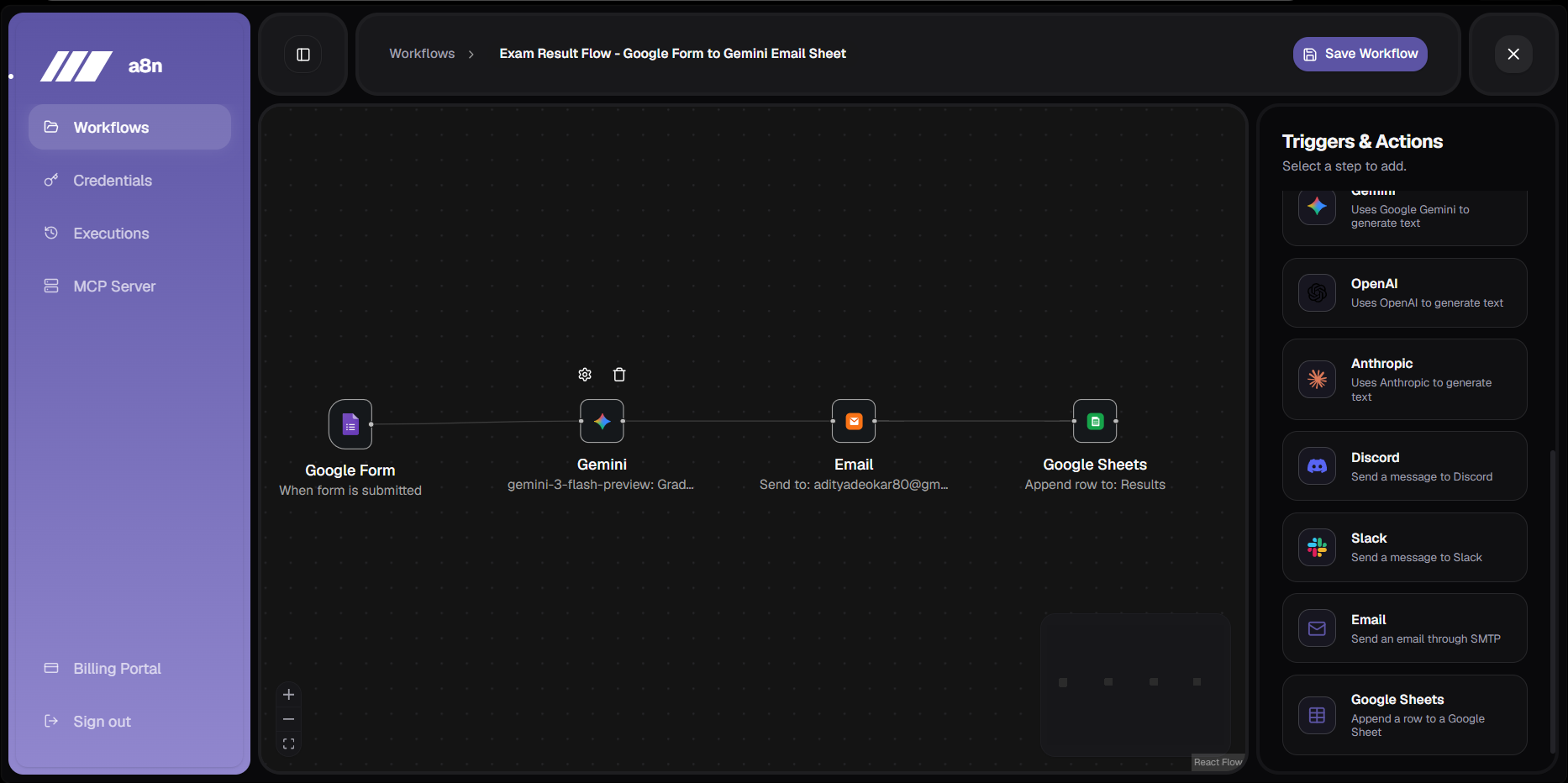

MEDIA / 02STATIC_CAPTURE

MEDIA / 03STATIC_CAPTURE

DEVELOPMENT
PROCESS

A rigorous, phased engineering lifecycle designed to transform architectural requirements into scalable, production-ready systems.

DISCIPLINED SYSTEM METHODOLOGY — ARCHITECTED FOR END-TO-END OBSERVABILITY, DETERMINISTIC REVIEWS, AND ZERO-REGRESSION RELEASE CYCLES.

Connected Lifecycle Grid

Swipe Horizontal • Connected Borders

PHASE / 01Bounded Contexts

Domain Decomposition

Mapped the commerce domain into 7 bounded contexts (identity, shops, catalog, orders, analytics, AI vision, gateway) with 25+ Prisma models across 6 model clusters.

Domain-Driven Design

PHASE / 02Hybrid Architecture

Service Topology

Designed the hybrid Nx monorepo: shared Prisma schema for development velocity, API gateway for unified entry, Kafka for async analytics decoupling, and isolated AI Vision for workload separation.

System DesignTradeoffs

PHASE / 03Shared Packages

Infrastructure

Built 5 shared packages (error-handler, middleware, libs, utils, test-utils) providing normalized error contracts, JWT auth, Prisma client, Kafka utilities, and test factories across all 9 applications.

DRY Infrastructure

PHASE / 04Container & K8s

DevOps Pipeline

Engineered multi-stage Dockerfiles, 3-tier Compose (infra, apps, full), Kustomize overlays for dev/staging/production, and 5 GitHub Actions workflows with Trivy scanning and SBOM generation.

CI/CDKubernetes

PHASE / 0511-Section System

Documentation

Built a canonical documentation system with 11 sections covering architecture, getting started, domain models, testing strategy, DevOps, and 5 formal Architecture Decision Records (ADRs).

Technical WritingADRs

ARCHITECTURE STACK // COMPONENT MATRIX

TECHNOLOGY
STACK

An engineered architectural map outlining foundational nodes, runtime environments, and type-safe deployment frameworks.

DETERMINISTIC ARCHITECTURE STACK — PROFILED FOR PRODUCTION LATENCY, STRICT TYPE SAFETY, AND HIGH-CONCURRENCY SCALABILITY.

Total Nodes

30+

Architectural Components

Type Safety

100%%

System Expansion Slot

Layer 1

frontend

Next.js 15React 19Tailwind CSS 4TanStack QueryZustand & Jotai

Layer 2

backend

Express + TypeScriptMongoDB + PrismaRedisKafka + KafkaJSStripe SDK

Layer 3

ai

Google GeminiHugging Face CLIPTensorFlow.jsLangChainImageKit

Layer 4

devops

Nx 21 MonorepoGitHub ActionsDocker + ComposeKubernetes + KustomizeTrivy + SBOM
